Across the United States, the economics of development are changing rapidly. Land is no longer abundant, and in many regions it has become one of the most expensive components of any project. Urban densification, industrial expansion, and the growth of logistics and data-driven infrastructure have intensified the competition for usable space. Developers, engineers, and asset owners are under constant pressure to maximize every square foot while still meeting regulatory and operational requirements.
At the same time, fire protection requirements are becoming more demanding. NFPA 22-compliant water storage tanks remain a critical part of fire suppression systems, providing a reliable and dedicated water supply when it matters most. However, the challenge today is not simply achieving the required storage capacity, it is doing so within increasingly constrained footprints.
This is where SBS Tanks NFPA 22 FIRE PROTECTION WATER TANKS – SBS USA has carved out a unique position in the market—delivering engineered fire protection water storage solutions designed for space efficiency, speed, and performance.
Delivering More Capacity in Less Space

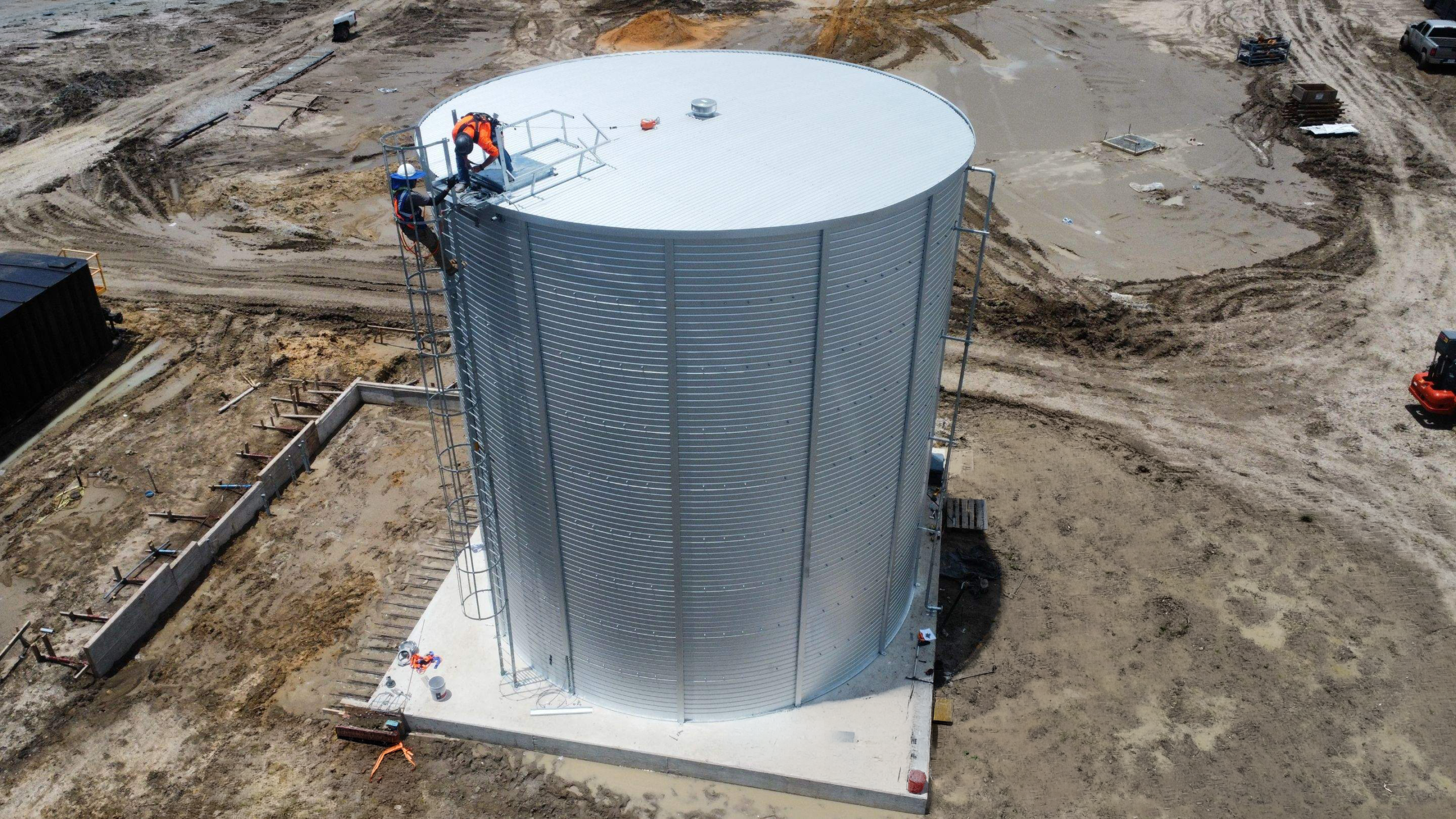

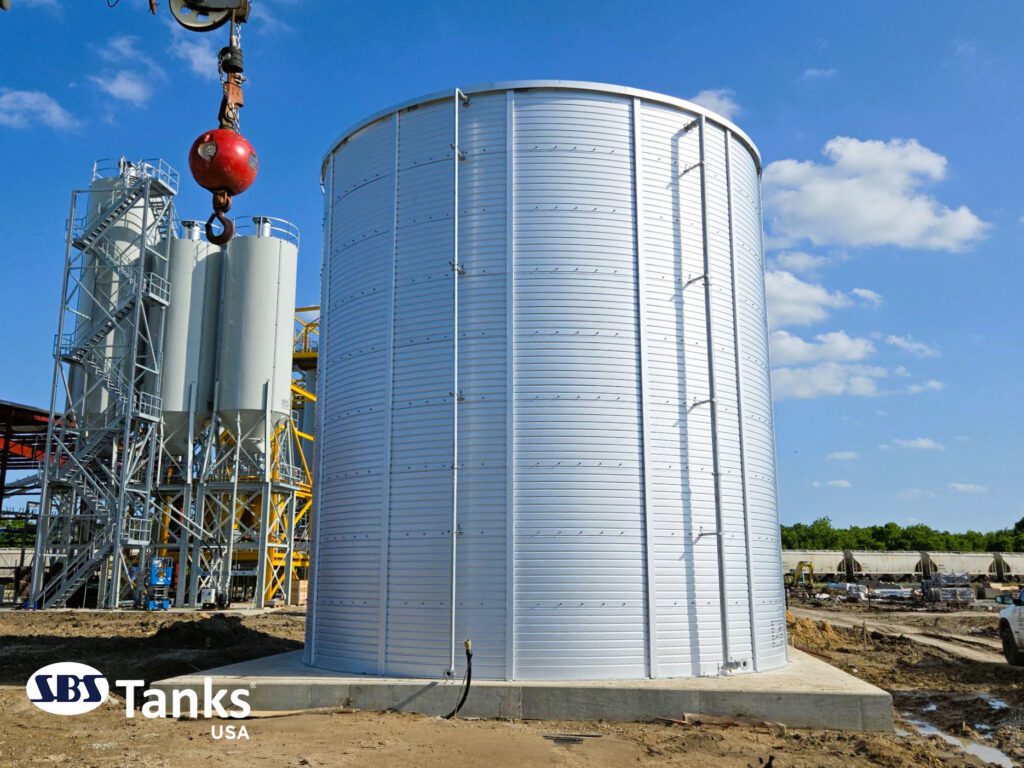

SBS Tanks specializes in vertically optimized, modular steel water tanks that deliver high storage capacity while minimizing ground footprint. Instead of increasing diameter to achieve volume, SBS Tanks increases height through a modular ring-based design.
This approach provides a clear advantage:
– Higher storage capacity per square foot
– Reduced land utilization on high-value sites
– Greater flexibility in layout and placement
With tank capacities ranging from approximately 3,000 gallons to over 1.1 million gallons, SBS Tanks offers scalable solutions for a wide range of fire protection applications. For detailed tank diameters, heights, and capacity configurations, refer to the SBS Tanks capacity charts: https://sbstanksusa.com/wp-content/uploads/sites/6/2022/07/SBS-Tanks-USA-Brochure_Capacity-Charts_010126.pdf
For developers and engineers, this translates directly into value. Every square foot saved on tank footprint is a square foot that can be used for revenue-generating infrastructure, operational space, or future expansion. In high-cost real estate markets, this efficiency can significantly improve overall project feasibility and return on investment.
Speed, Flexibility, and Project Efficiency
Beyond footprint efficiency and NFPA-22 compliance, SBS Tanks delivers another major advantage – speed. Traditional tank systems often involve long fabrication timelines, transport challenges, and complex installation requirements. In contrast, SBS Tanks’ modular bolted steel system allows for rapid delivery and assembly on site.
Panels are manufactured to specification and transported efficiently, allowing tanks to be installed quickly without the need for cranes or heavy welding equipment. This reduces disruption, shortens construction timelines and helps projects stay on schedule.
In industries where time equals cost – such as commercial development, industrial expansion, and infrastructure projects – this ability to deliver quickly provides a significant competitive edge.
Designed for NFPA 22 Fire Protection Applications
SBS Tanks systems are engineered specifically for fire protection applications, ensuring compliance with NFPA 22 standards. Each tank is designed to provide a dependable and immediate water supply, integrate seamlessly with fire suppression systems, and meet regulatory and insurance requirements NFPA 22 FIRE PROTECTION WATER TANKS – SBS USA.
The durability of SBS Tanks is supported by corrosion-resistant Galvalume® steel panels and high-performance liner systems. These materials ensure long-term reliability, even in challenging environments.
Applications include:
– Commercial and industrial facilities
– Data centers and critical infrastructure
– Education facilities
– Warehousing & distribution centers
– Retail and commercial developments
– Hospitality and public venues
The Engineering Advantage of Vertical Design
The ability to increase capacity vertically rather than horizontally is what enables SBS Tanks to provide such strong value. Using a modular ring system, tanks can be configured to increase height incrementally, including multi-ring configurations such as 9-ring tanks, while maintaining a compact footprint.
However, increasing height introduces engineering considerations. As tanks become taller and more slender, the height-to-radius ratio increases, affecting stability and structural behavior. These factors must be carefully addressed to ensure long-term performance and compliance.
Seismic and Cyclonic Design: Engineering for Real-World Conditions
In regions exposed to seismic activity and cyclonic or hurricane-force winds, the design of vertically optimized tanks becomes more complex.
Wind loading increases with height, meaning taller tanks experience higher lateral forces and greater overturning moments at the base. In high wind regions, tanks can behave like vertical cantilever structures, requiring careful engineering to manage stress, deflection, and uplift forces.
Similarly, in seismic zones, water tanks behave as fluid-structure systems. During an earthquake, the lower portion of the water moves with the tank (impulsive force), while the upper portion creates sloshing waves (convective force). Taller tanks amplify these effects due to increased liquid column height and mass distribution.
SBS Tanks engineers address these challenges through site-specific design. This includes evaluating wind speeds, seismic activity, soil conditions, and regulatory requirements. Height-to-radius ratios are optimized, structural components are reinforced, and anchoring systems are engineered to resist uplift and overturning forces.
Conclusion
As land costs rise and site constraints become more demanding, the need for smarter fire protection infrastructure will continue to grow. SBS Tanks delivers a solution that balances capacity, efficiency, and engineering performance.
By providing high-capacity storage in smaller footprints, reducing project timelines, and ensuring compliance with NFPA 22, SBS Tanks enables developers and engineers to meet modern demands without compromise.
About SBS Tanks USA
SBS Tanks USA is a leading provider of modular steel water storage solutions, serving the United States and surrounding regions. With decades of global experience, SBS specializes in bolted steel tanks with advanced liner systems for fire protection, industrial, and commercial applications.
The company is known for delivering reliable, engineered solutions that combine durability, efficiency, and rapid deployment, helping clients meet the evolving challenges of infrastructure and fire protection systems.
